C.Scope MXT4

Digital signal generators C.Scope MXT4

Higher performance, higher safety!

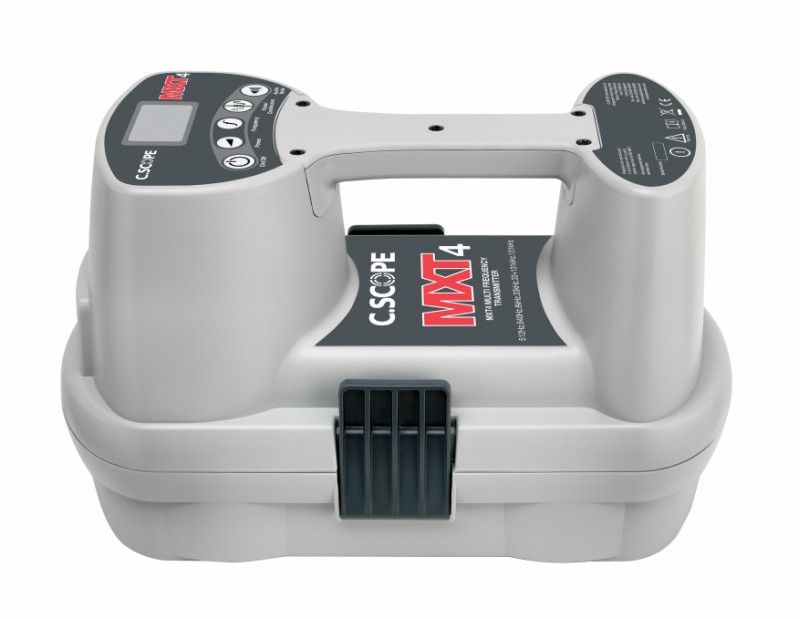

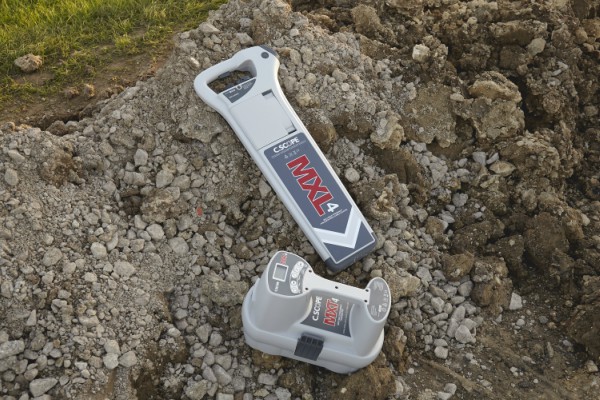

C.Scope MXT4 is One Watt dual-frequency (33+131kHz) Signal Generators. Designed for use with a MXL4 Cable Avoidance Tool.

 It enables significantly more underground utilities to be detected including street lighting cables.

The MXT4 Signal Generator can apply the dual frequency signal without direct connection to buried services, using either a Signal Clamp or the simple induction method from ground level, providing a significant improvement in the detection of the smaller diameter or poorly earthed cables.

THREE SIGNAL APPLICATION TECHNIQUES

The MXT4 offers three alternative ways to apply a Signal Generator signal:

Direct Connection allows specific pipes or cables to be individually traced, identified and their depths measured. The use of Signal Clamps, Signal Injectors and Direct Connection leads make this mode the most effective method for pinpointing pipes and cables.

If it is difficult or inconvenient to use Direct Connection, then the Wraparound technique can be utilised to successfully energise a street or car park lighting cable.

Induction allows the Signal Generator to induce a detectable and traceable signal to previously unknown, undetected or inaccessible underground metal pipes or cables.

Power output
1 Watt

Dimensions
360 x 180 x 230mm

Weight
2.0kg only the generator.

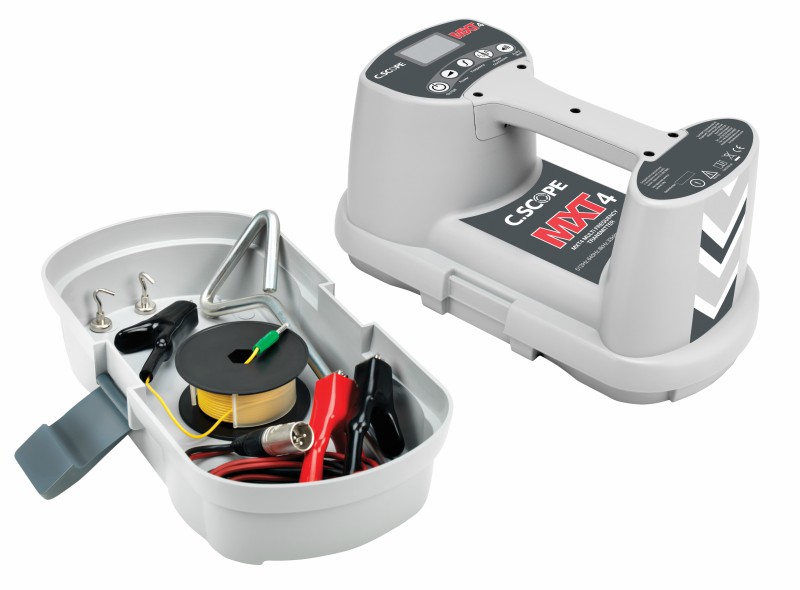

3.4kg with accessories.

Batteries
4 x D (LR20) alkaline for 40 hour operation.
Compatible with rechargeable NiMH batteries.

Operating Temperatures
-20°C to +50°C

IP
IP65

Warranty
3 Years
