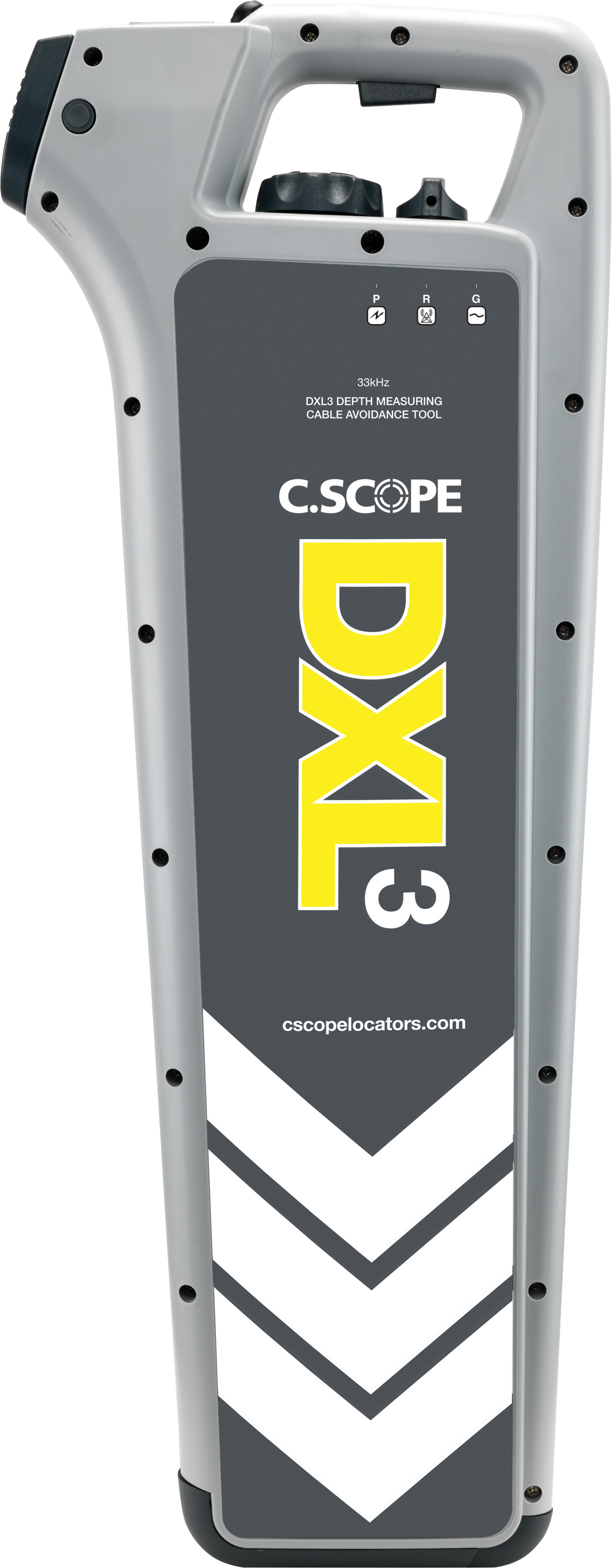

C.Scope DXL3

C.Scope DXL3

Higher performance, higher safety!

C.Scope DXL3 depth measuring Cable Avoidance Tool is a robust and affordable industry standard locator used to detect buried pipes and cables prior to excavation..

Hitting and damaging buried services when excavating is costly and potentially very dangerous. The C.Scope Cable Avoidance Tool is the ideal ‘pick-up-and-go tool to locate buried pipes and cables, quickly and reliably, time after time.

DEPTH MEASUREMENT
The DXL3 Cable Avoidance Tool also features the addition of a simple to operate Depth Measurement button on the top of the product (for use in GENERATOR Mode).

When combined with a C.Scope SGA3 Signal Generator and accessories, the Cable Avoidance Tool becomes a versatile, all round pipe and cable locating and tracing package. Robustly made and equipped with LCD meter, detachable loudspeaker and easy-to-operate fingertip controls the C.Scope Cable Avoidance Tool is the ideal Locator for all levels of staff who need to be able to detect buried services quickly and with confidence.

Dimensions: 720mm x 270mm x 63mm

Weight:
2.9kg with batteries.

Batteries:
Internal 8 x AA’ (LR6) lkaline for 40 hour operation.
Compatible with rechargeable NiMH batteries.

Operating temperatures: -20°C to+50°C

IP: IP65

Warranty: 3 Years

Performance:

• Locate accuracy: better than 10% depth
• Depth accuracy: ±5% @ 1m
• Depth measurement range: 0,2 - 3m
• Depth Resolution: 0.05m
• Depth measurement range with sonde: 0,85 - 4,5m - depending on sonde type
• Depth resolution with sonde: 0,15m
